Excavator attachment
Harvester Head

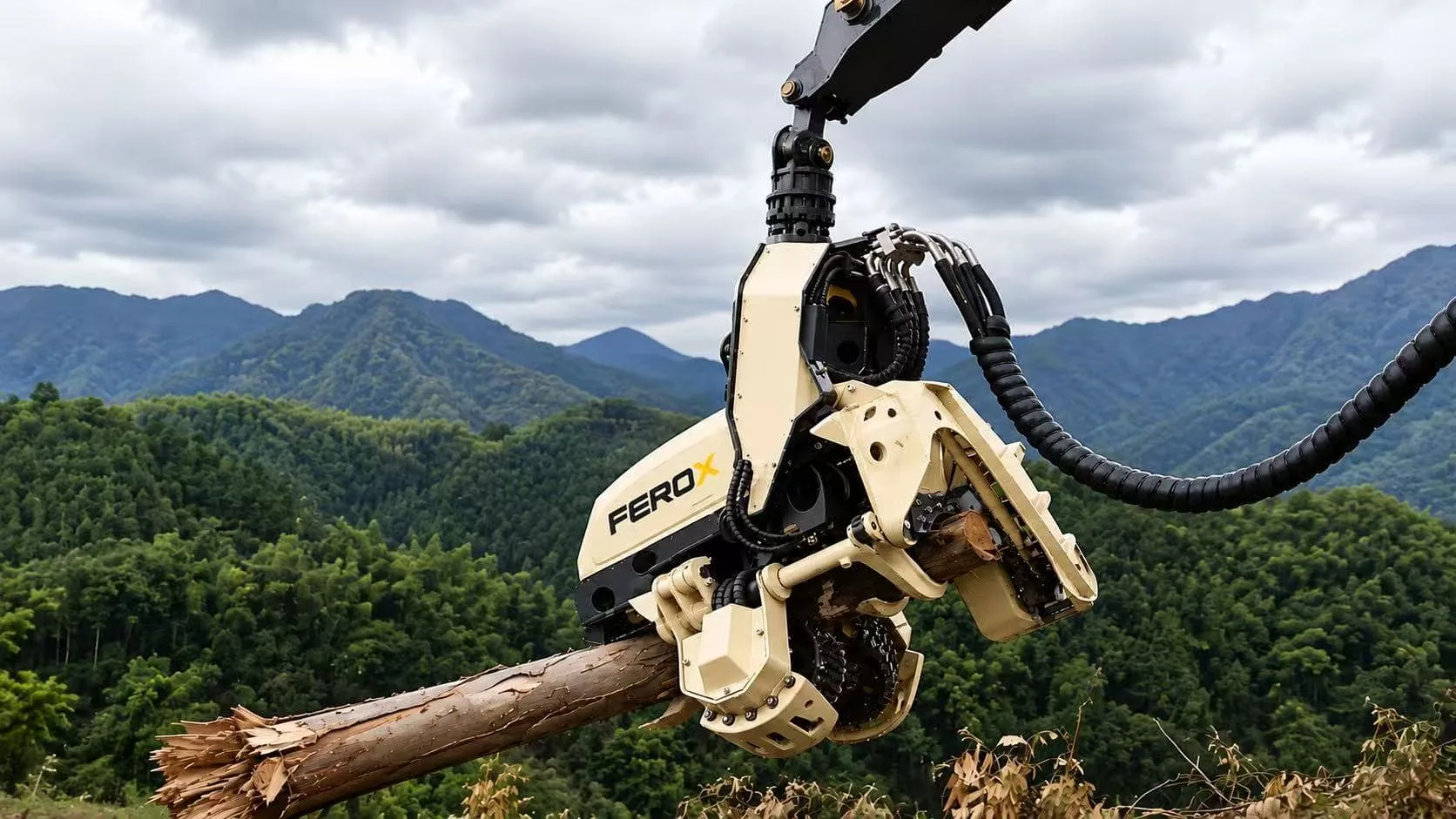

HF-H6 / HF-H7 / HF-H8FEROX harvester head for forestry harvesting, timber feeding, delimbing, and cutting applications, with three feeding rollers, hydraulic drive, and carrier-matched model selection.
Model MatchingHF-H6, HF-H7, and HF-H8
Hydraulic ReviewFlow, pressure, and carrier power
Warranty Support12 months or 2000 working hours
FOC PartsGuide bars and chains package
Ideal Applications
Forestry Harvesting
Product data
Harvester Head specifications
| Item | HF-H6 | HF-H7 | HF-H8 |
|---|---|---|---|
| Recommended power (kW) | 70-120 | 110-150 | 120-180 |
| P1 / P2 oil flow (L/min) | 180-260 | 280-320 | 300-350 |
| P1 / P2 pressure (MPa) | 28 | 28 | 28 |
| Net weight (kg) | 1100 | 1200 | 1500 |
| Operating weight (kg) | 1350 | 1450 | 1850 |
| Length (mm) | 1450 | 1500 | 1600 |
| Width (mm) | 1500 | 1550 | 1700 |
| Height (mm) | 1550 | 1700 | 1760 |
| Feed system | 3 feeding rollers | 3 feeding rollers | 3 feeding rollers |
| Feed force (kN) | 25 | 30 | 36 |
| Feeding speed (m/s) | 5.5 | 5 | 5 |
| Feed roller max. opening (mm) | 600 | 650 | 740 |
| Saw bar length (mm) | 750/820 | 750/820 | 820/900 |
| Cutting diameter (mm) | 640 | 640 | 720/800 |
| Chain (inch) | 0.404 | 0.404 | 0.404 |
| Number of knives | 4+1+1 | 4+1+1 | 4+1+1 |
| Max. opening of front knives (mm) | 640 | 640 | 740 |
| Max. opening of rear knives (mm) | 700 | 750 | 780 |
Buyer questions
Harvester Head FAQ
Which models are available?
The available Harvester Head models are HF-H6, HF-H7, and HF-H8. Model selection depends on carrier power, hydraulic flow, working pressure, timber size, and application.
What warranty information is available?
Available information indicates 12 months or 2000 working hours, whichever comes first. Warranty details must be confirmed in the final quotation or sales contract.
What free-of-charge parts are listed?
The supplied information lists 2 pcs guide bar and 3 pcs chains as FOC parts. Final spare parts scope should be confirmed before order.
Before you compare prices
Confirm carrier and hydraulic fit before ordering.
Review excavator model, carrier power, hydraulic flow and pressure, timber diameter, application, quantity, and destination before quotation.
