Excavator attachment

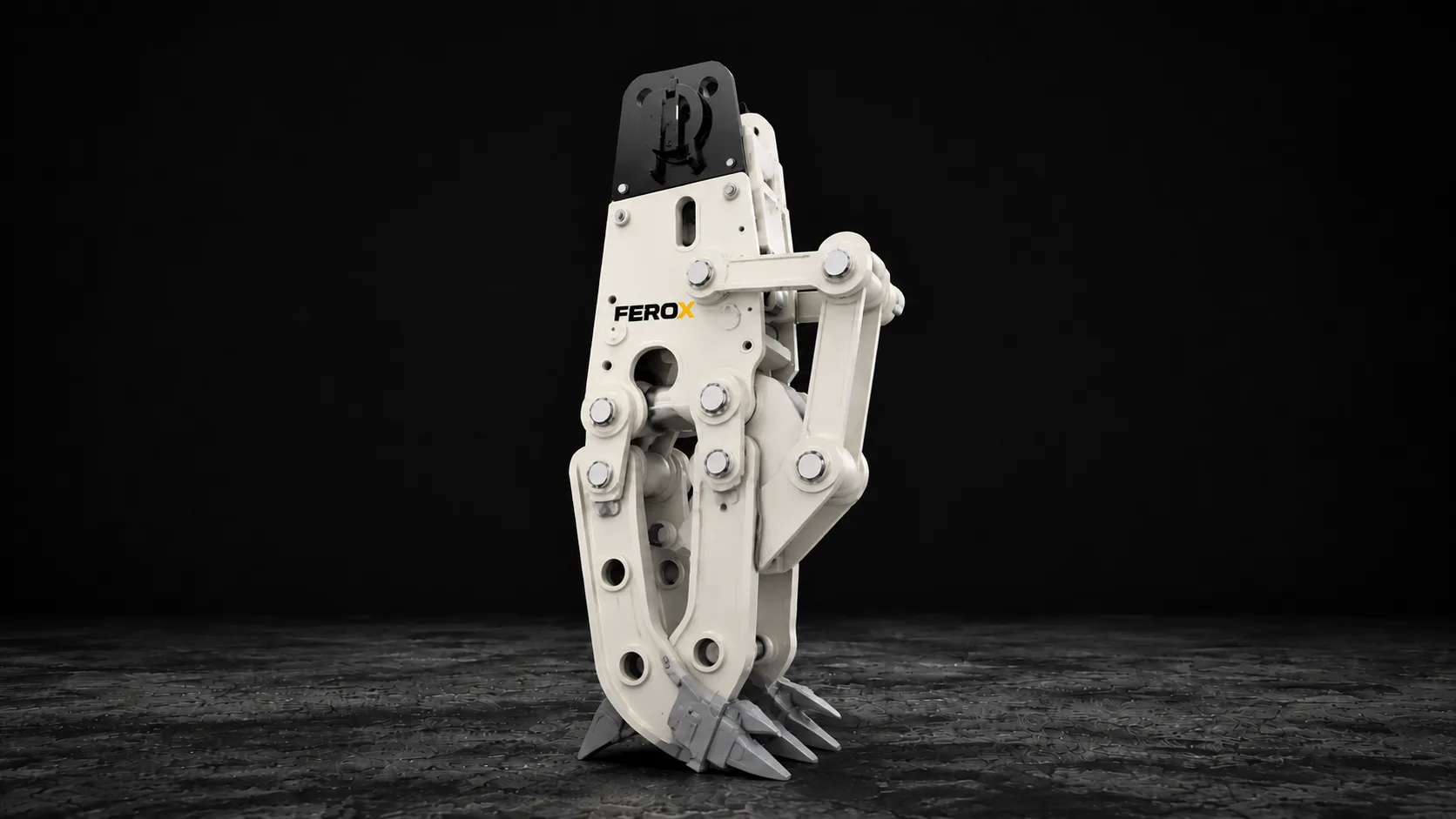

Mechanical Grab

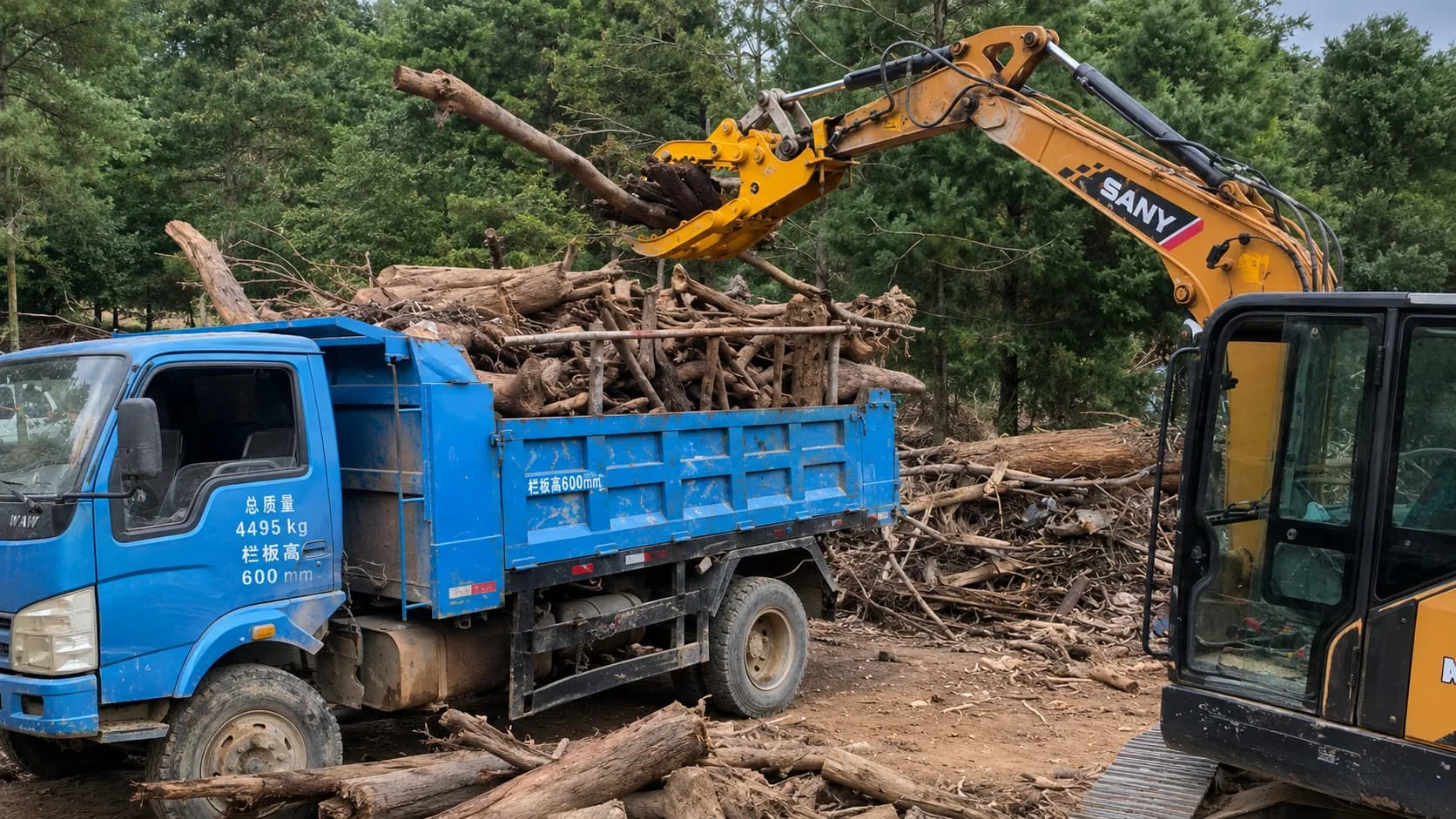

Mechanical material handlingMechanical grab for sorting, loading, and handling non-hydraulic material jobs.
Model MatchingCarrier and hydraulic review
OEM CustomizationLogo, color and nameplate
Pre-Shipment InspectionQC before delivery
Export SupportOrder and shipping documents
Ideal Applications
Product data
Mechanical Grab specifications
| Model | Total length (mm) | Three teeth width (mm) | Two teeth width (mm) | Max. opening width (mm) | Weight (kg) | Grab weight (kg) | Suitable excavator (ton) |
|---|---|---|---|---|---|---|---|
| HF30MG-3+2J | 980 | 375 | 200 | 1020 | 110 | 200 | 3-5 |
| HF60MG-3+2J / HF80MG-3+2J | 1400 | 495 | 295 | 1580 | 320 | 600 | 5-11 |
| HF150MG-3+2J | 1820 | 680 | 390 | 2100 | 850 | 1500 | 12-18 |
| HF200MG-3+2J | 2335 | 840 | 490 | 2600 | 1170 | 2000 | 18-24 |
| HF300MG-3+2J | 2335 | 840 | 490 | 2600 | 1200 | 3000 | 25-36 |
Buyer questions
Mechanical Grab FAQ
How do I match the correct Mechanical Grab model?
Send the excavator brand, model, carrier weight, hydraulic flow, working pressure, application, and destination market. FEROX will check compatibility before quotation.
Can OEM branding and spare parts be supplied?
Yes. Logo, color, nameplate, packing, and a matched spare parts package can be discussed according to quantity and technical requirements.
Before you compare prices
Confirm the attachment fit before you order.
Review carrier weight, hydraulic requirements, mounting dimensions, application, quantity, and destination before quotation.
