Excavator attachment

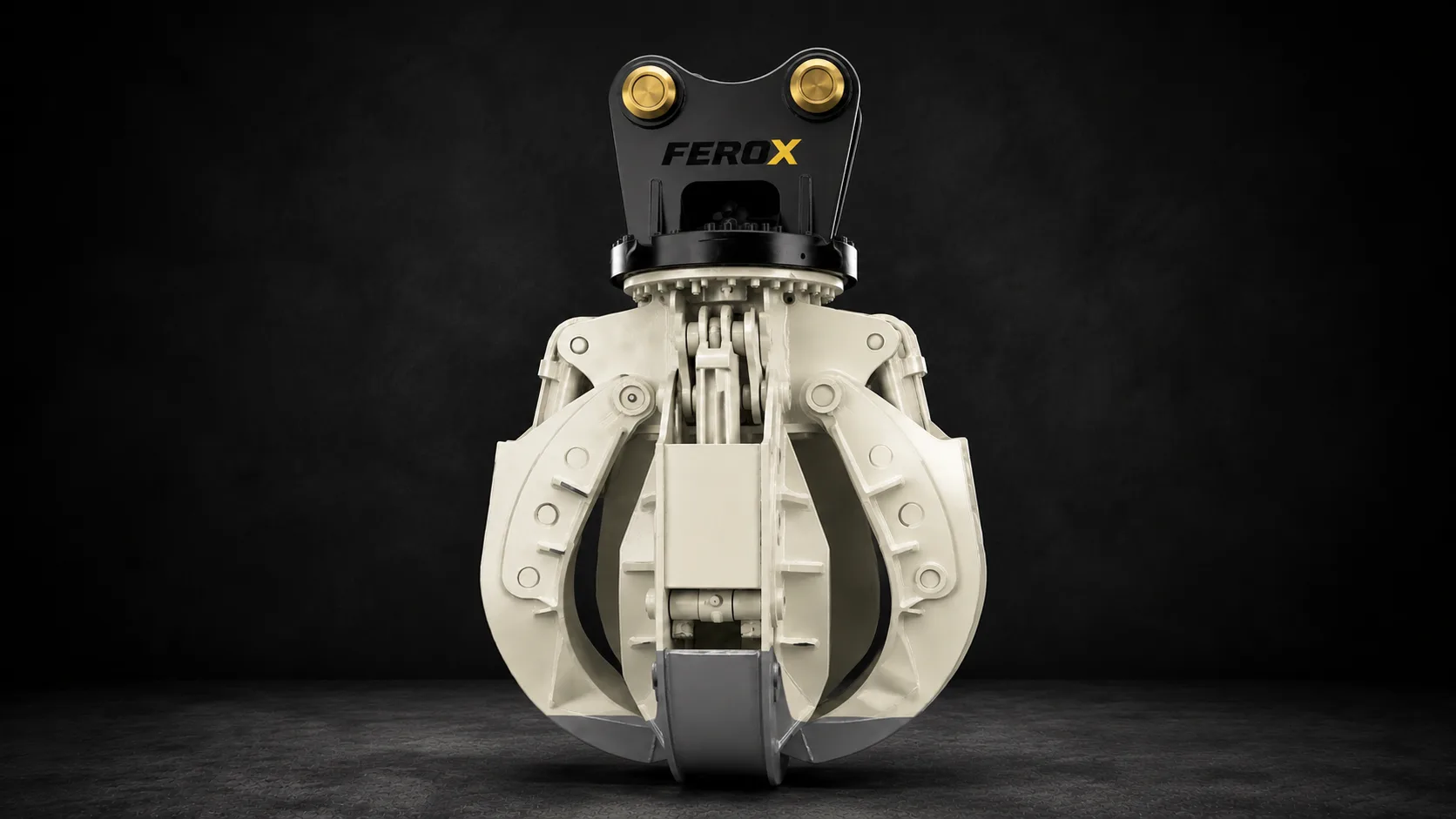

Orange Peel Grab

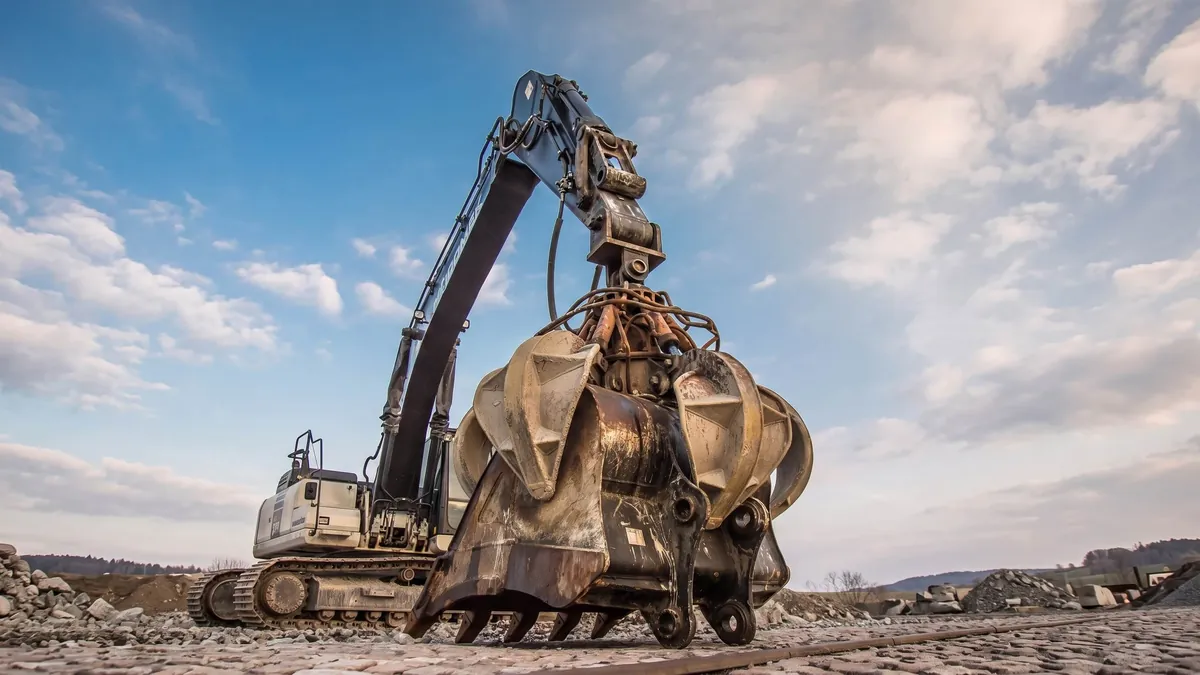

Rotary hydraulic grabOrange peel grab for scrap, bulk material, waste handling, and loading applications.
Model MatchingCarrier and hydraulic review
OEM CustomizationLogo, color and nameplate
Pre-Shipment InspectionQC before delivery
Export SupportOrder and shipping documents
Ideal Applications
Product data
Orange Peel Grab specifications
| Model | Max. opening (mm) | Opening height (mm) | Opening width (mm) | Closing height (mm) | Closing width (mm) | Max. pressure (kg/cm2) | Max. oil flow (l/min) | Capacity (m3) | Weight (kg) | Suitable excavator (ton) |
|---|---|---|---|---|---|---|---|---|---|---|
| HF06M5L-SX | 2100 | 1595 | 2320 | 1300 | 1966 | 260 | 180-280 | 0.6 | 1200 | 12-18 |
| HF08M5L-SX | 2300 | 1800 | 2520 | 1480 | 2150 | 260 | 180-280 | 0.8 | 1760 | 18-24 |
| HF10M5L-SX | 2500 | 1900 | 2750 | 1550 | 2250 | 260 | 180-280 | 1 | 1880 | 24-36 |
| HF12M5L-SX | 2750 | 1980 | 3000 | 1650 | 2416 | 260 | 180-280 | 1.2 | 1980 | 36-40 |
Buyer questions
Orange Peel Grab FAQ
How do I match the correct Orange Peel Grab model?
Send the excavator brand, model, carrier weight, hydraulic flow, working pressure, application, and destination market. FEROX will check compatibility before quotation.
Can OEM branding and spare parts be supplied?
Yes. Logo, color, nameplate, packing, and a matched spare parts package can be discussed according to quantity and technical requirements.
Before you compare prices
Confirm the attachment fit before you order.
Review carrier weight, hydraulic requirements, mounting dimensions, application, quantity, and destination before quotation.
