Excavator attachment

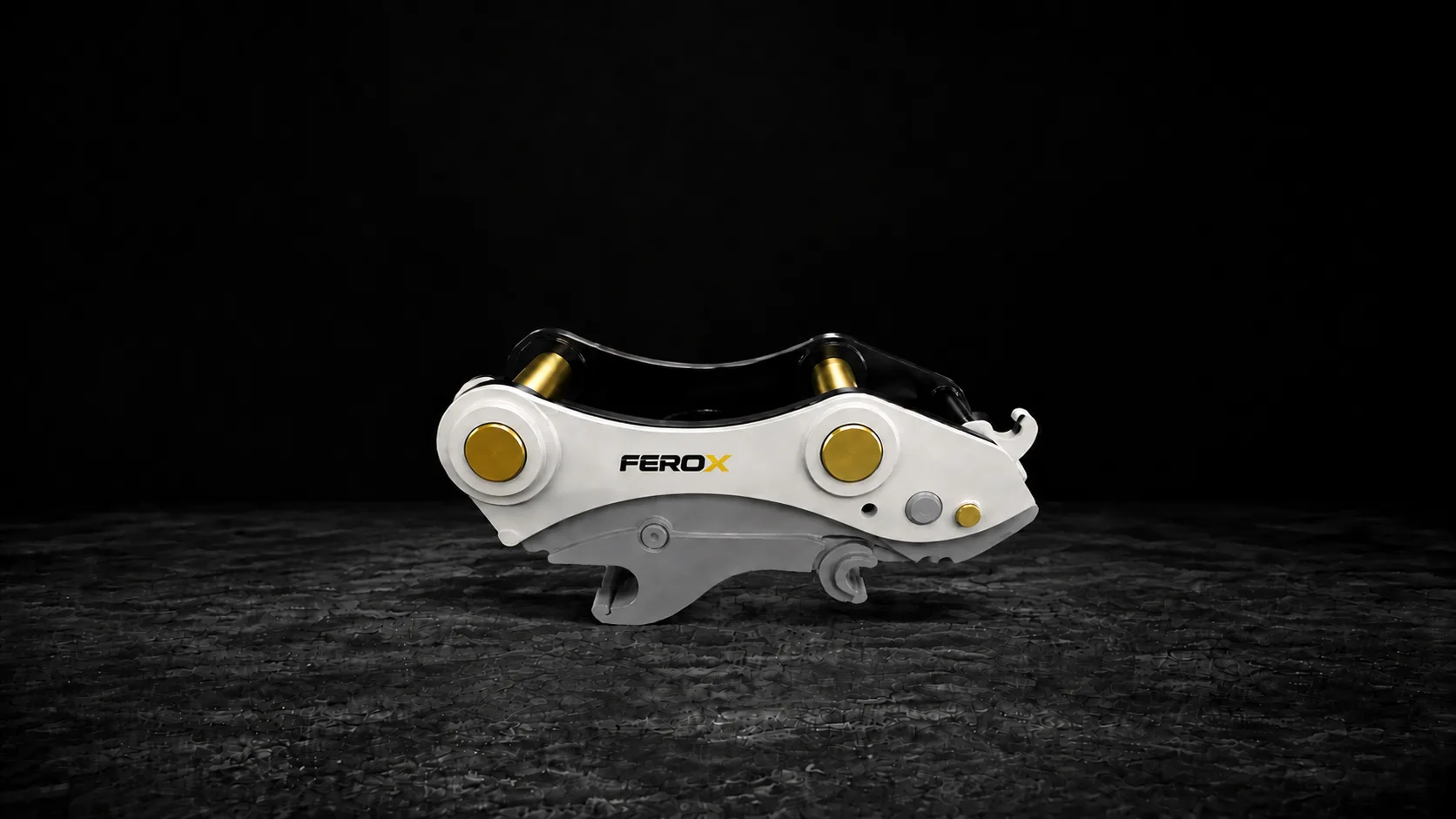

Quick Coupler
Fast attachment changeDealer-ready quick coupler solution for excavator fleets that need faster attachment switching, model matching, and export packing support.
Model MatchingCarrier and hydraulic review
OEM CustomizationLogo, color and nameplate
Pre-Shipment InspectionQC before delivery
Export SupportOrder and shipping documents
Ideal Applications
Product data
Quick Coupler specifications
| Model | Overall length (mm) | Total height (mm) | Pin to pin distance (mm) | Cylinder expansion distance (mm) | Upper/lower pin distance (mm) | Pin diameter (mm) | Weight (kg) | Pressure (MPa) | Suitable excavator (ton) |
|---|---|---|---|---|---|---|---|---|---|
| HF60K | 565 | 335 | 235-265 | 230-320 | 220 | 45 | 90 | 40-380 | 5-9 |
| HF80K | 600 | 345 | 285-330 | 250-330 | 220 | 50-55 | 100 | 40-380 | 9-11 |
| HF150K | 780 | 435 | 390-430 | 340-430 | 275 | 60-65 | 210 | 40-380 | 11-18 |
| HF200K | 1000 | 545 | 455-500 | 420-500 | 350 | 70-80 | 390 | 40-380 | 18-24 |
| HF300K | 1070 | 600 | 500-520 | 450-600 | 380 | 90 | 520 | 40-380 | 24-36 |
| HF400K | 1080 | 610 | 550-590 | 510-630 | 390 | 100 | 560 | 40-380 | 36-40 |
| HF500K | 1120 | 640 | 590 | 510-630 | 390 | 110 | 450-600 | 40-380 | 40-48 |
Buyer questions
Quick Coupler FAQ
How do I confirm the right Quick Coupler for my excavator?
Send the excavator model, operating weight, hydraulic flow, working pressure, and application. FEROX will review compatibility before quotation.
Can FEROX support OEM requirements?
Yes. Available options can include logo, color, nameplate, bracket details, and product documentation, subject to order confirmation.
What information is needed for a quotation?
Please provide the required quantity, destination country or port, excavator information, application, and any OEM requirements.
Before you compare prices
Confirm the attachment fit before you order.
Review carrier weight, hydraulic requirements, mounting dimensions, application, quantity, and destination before quotation.
