Hard Soil

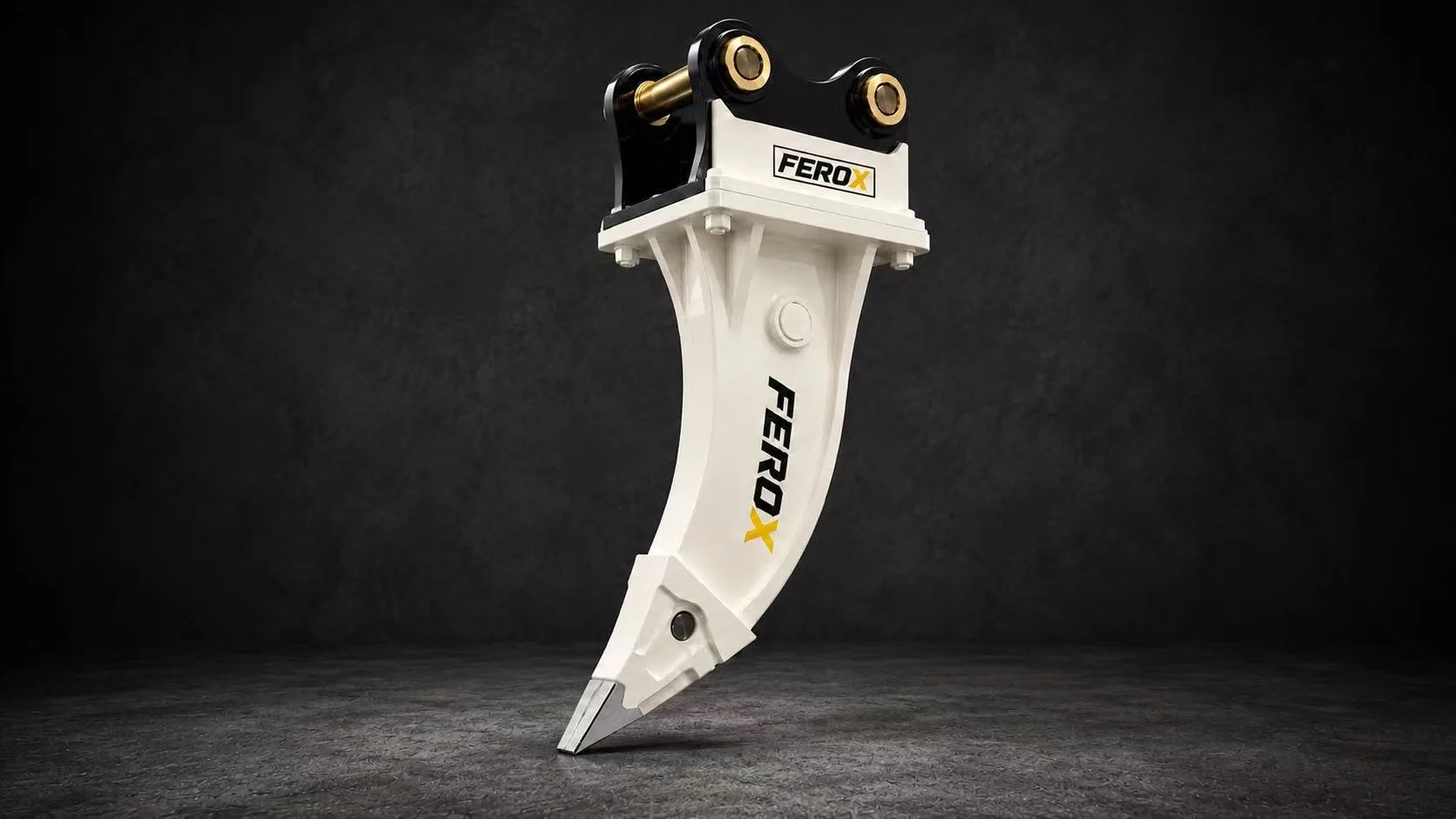

Ripper attachment for breaking hard soil, frozen ground, rock layers, and compacted material.
Excavator attachment
Ripper
Rock and hard soil rippingRipper attachment for breaking hard soil, frozen ground, rock layers, and compacted material.
Model MatchingCarrier and hydraulic review
OEM CustomizationLogo, color and nameplate
Pre-Shipment InspectionQC before delivery
Export SupportOrder and shipping documents
Primary Application
Product data
Ripper specifications
| Item | HF60S | HF150S | HF200S | HF300S | HF400S | HF450S | HF500S | HF600S |
|---|---|---|---|---|---|---|---|---|
| Pin to pin distance (mm) | 262 | 390 | 476 | 510 | 537 | 585 | 600 | 640 |
| Total width (mm) | 60 | 60 | 80 | 90 | 110 | 110 | 645 | 680 |
| Total height (mm) | 670 | 835 | 1150 | 1138 | 1685 | 1685 | 1685 | 1688 |
| Pin diameter (mm) | 45 | 65 | 80 | 95 | 110 | 110 | 110 | 120 |
| Pin length (mm) | 154 | 255 | 307 | 410 | 371 | 419 | 484 | 500 |
| Plate thickness (mm) | 60 | 60 | 80 | 90 | 90 | 110 | 110 | 140 |
| Tooth type (type) | Pc100 | Pc100 | D85 | D90 | D90 | D11 | D11 | D12 |
| Weight (kg) | 80 | 165 | 400 | 650 | 960 | 980 | 1100 | 1500 |
| Suitable excavator (ton) | 5-8 | 12-18 | 18-24 | 25-36 | 36-40 | 41-46 | 40-50 | 50-60 |
Buyer questions
Ripper FAQ
How do I match the correct Ripper model?
Send the excavator brand, model, carrier weight, hydraulic flow, working pressure, application, and destination market. FEROX will check compatibility before quotation.
Can OEM branding and spare parts be supplied?
Yes. Logo, color, nameplate, packing, and a matched spare parts package can be discussed according to quantity and technical requirements.
Before you compare prices
Confirm the attachment fit before you order.
Review carrier weight, hydraulic requirements, mounting dimensions, application, quantity, and destination before quotation.
